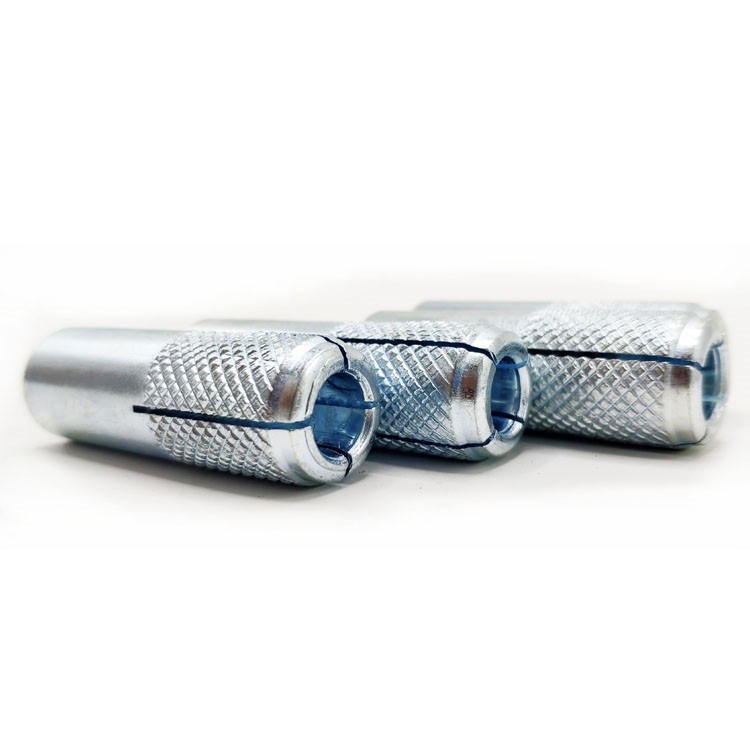

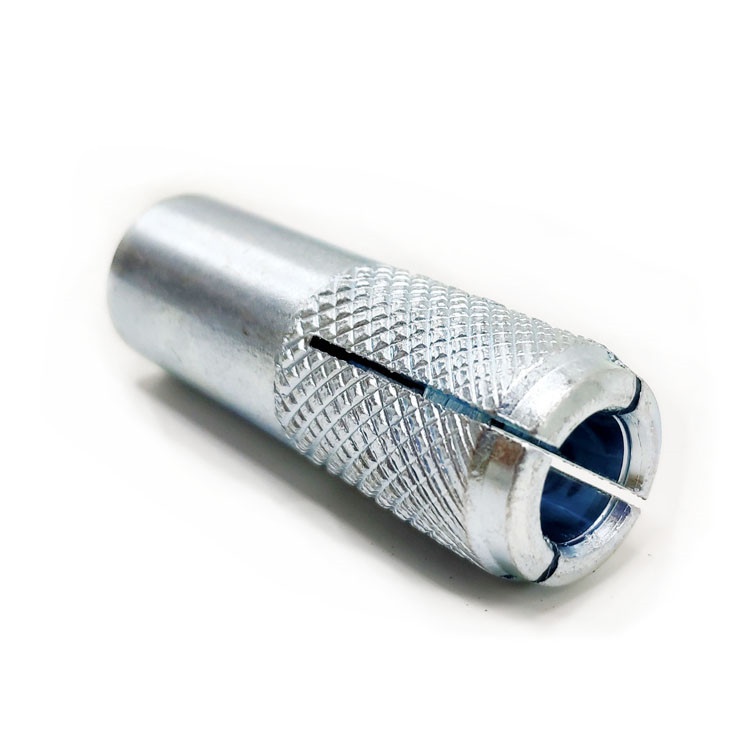

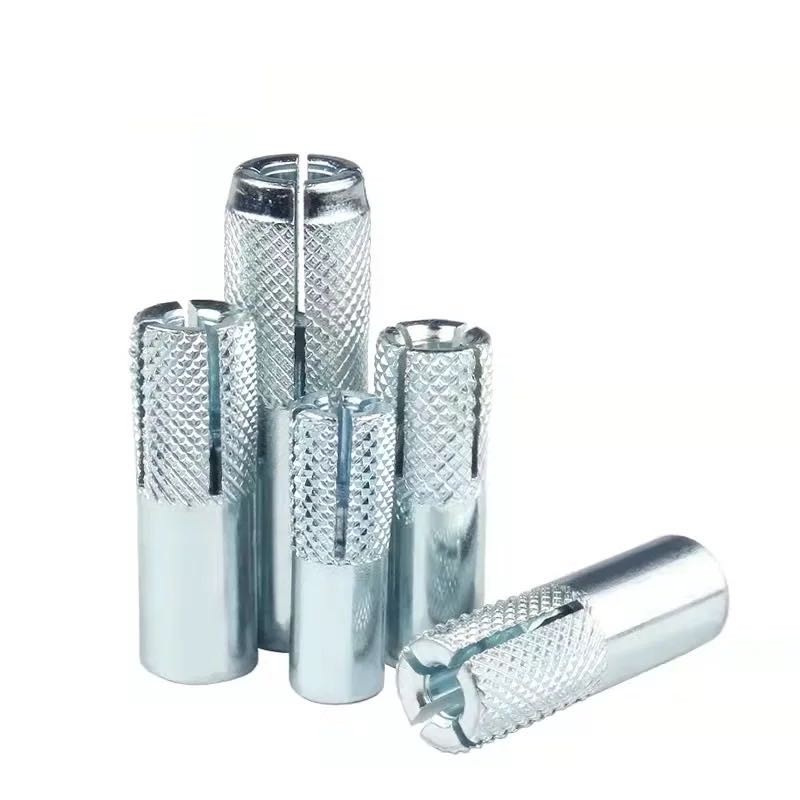

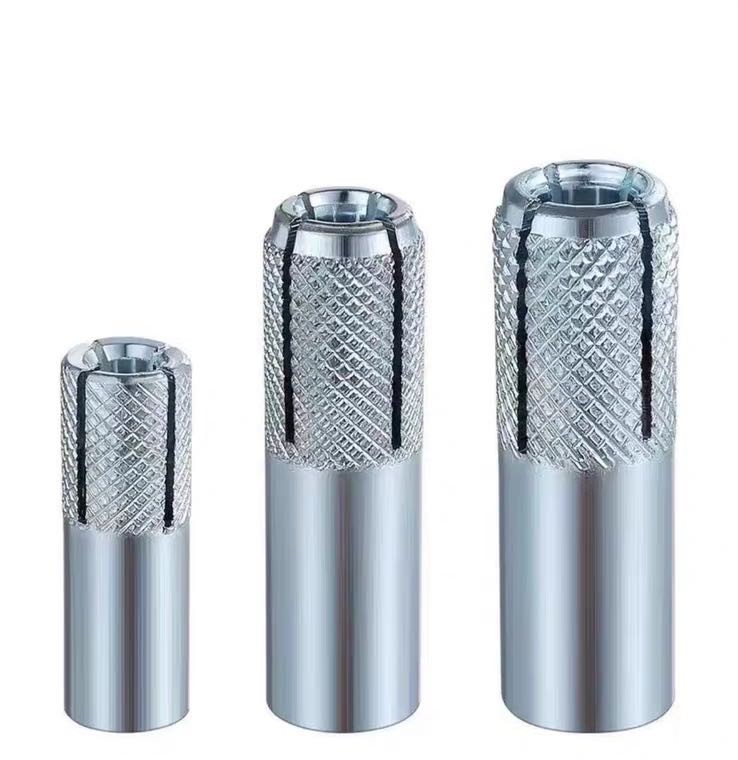

Drop In Anchor

Short Description:
Min.Order Quantity:1000PCS

PACKAGING:BAG/BOX WITH PALLET

PORT:TIANJIN/QINGDAO/SHANGHAI/NINGBO

DELIVERY:5-30DAYS ON QTY

PAYMENT:T/T/LC

Supply Ability:500 TON PER MONTH

QUICK Response

QUICK Quotation

QUICK Delivery

READY TO SHIP DELIVERY

10000+ SKU in warehouse

We Commit for RTS items:

70% items delivered within 5 days

80% items delivered within 7 days

90% items delivered within 10 days

Bulk orders, please contact customer service

。

Technical parameters(mm):

Product model	Drilling diameter	Standard drilling depth	Effective depth	Anchor length
M6×25	6	28	25	25
M8×30	8	33	30	30
M10×40	10	43	40	40
M12×25	12	53	50	50
M16×65	16	68	65	65
M20×80	20	83	80	80

Operating:

1. Use straight hole drills to drill holes of corresponding diameter and depth;

2. Use the soot blower to sweep ash until the hole has no dust overflow;

3. Put the anchor in the hole;

4. Use a hammer to hit the inner core with a rod to expand the expansion sheet;

5. Screw in the hex bolts to complete the anchoring.

P.s. Electric hammer, drills, soot blowers, hammer and rod will be used during the operation. Jiraw is equipped with a mounting connector as standard. Others are purchased on demand.

Packing

About Us

In recent years, we have expanded businesses to over 20 countries, Vietnam, Thailand, Indonesia, Malaysia, Bangladesh, India, Pakistan, Egypt, Kuwait, UAE, South Africa, Germany, Russia, the United States, Canada, Mexico, and so on.

Address: LongCao Industry zone Yongnian District HanDan City,HeBei Province China

Contact: Eileen

Call: +8615188886149

WhatsApp：+8615188886149

Can you provide the necessary customs clearance documents?
Yes. We are a legal and compliant enterprise of the People's Republic of China, having the formal import and export qualification. RCEP certificate, FORM E, CO, Invoice with embassy certification or CCPIT are all available for our order.

How pay?
T/T, L/C are both OK.
